Standing size
Approximately 1098mm×550mm×758mm
Folding size
Approximately 950mm×550mm×450mm
Weight
Approximately 85kg (whole machine, including battery, about 12kg)
Battery capacity
>2kwh, voltage 58V
Maximum platform moving speed
15km/h [1]
Endurance
Maximum endurance range with 40kg load is 25km [2]
Maximum endurance range without load is about 30km [2]
Maximum standing load
120kg
Continuous walking load
>40kg
Wheel diameter
225mm
Maximum wheel speed
50rad/s
Maximum wheel torque
40N.m
Stair walking ability
Maximum step height 20~25cm

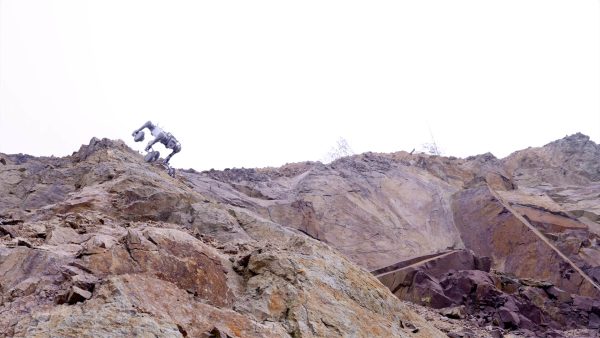

Climbing ability
Forward climbing and descending height 40cm step
Working temperature
-20℃ ~ 55℃
Slope walking ability
> 45°
Protection level
IP67

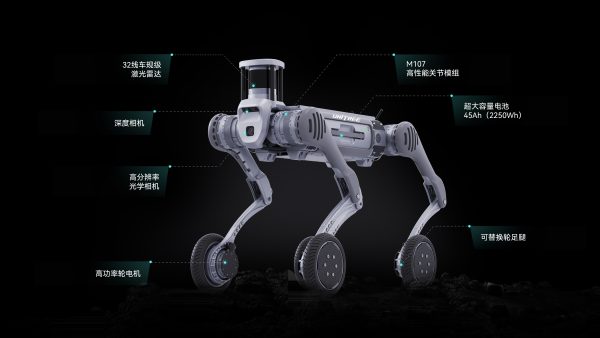

Control & sensing configuration
Standard: Intel Core i5 (platform function), Intel Core i7 (user development)
Optional: Intel Core i7 and Nvidia Jetson Orin NX (up to 3 pieces)
